Lab 10

Functions

def compute_control(cur_pose, prev_pose):
    """ Given the current and previous odometry poses, this function extracts
    the control information based on the odometry motion model.

    Args:
        cur_pose  ([Pose]): Current Pose
        prev_pose ([Pose]): Previous Pose

    Returns:
        [delta_rot_1]: Rotation 1  (degrees)
        [delta_trans]: Translation (meters)
        [delta_rot_2]: Rotation 2  (degrees)
    """

    delta_rot_1 = mapper.normalize_angle(np.degrees(np.arctan2(np.radians(cur_pose[1] - prev_pose[1]),np.radians(cur_pose[0]-prev_pose[0]))-np.radians(cur_pose[2])))
    delta_trans = np.sqrt((cur_pose[0] - prev_pose[0])**2 + (cur_pose[1] - prev_pose[1])**2)
    delta_rot_2 = mapper.normalize_angle(cur_pose[2] - prev_pose[2] - delta_rot_1)

    return delta_rot_1, delta_trans, delta_rot_2

def odom_motion_model(cur_pose, prev_pose, u):
    """ Odometry Motion Model

    Args:
        cur_pose  ([Pose]): Current Pose
        prev_pose ([Pose]): Previous Pose
        (rot1, trans, rot2) (float, float, float): A tuple with control data in the format
                                                   format (rot1, trans, rot2) with units (degrees, meters, degrees)


    Returns:
        prob [float]: Probability p(x'|x, u)
    """

    delta_rot_1, delta_trans, delta_rot_2 = compute_control(cur_pose, prev_pose)

    prob_rot_1 = loc.gaussian(delta_rot_1, u[0], loc.odom_rot_sigma)
    prob_trans = loc.gaussian(delta_trans, u[1], loc.odom_trans_sigma)
    prob_rot_2 = loc.gaussian(delta_rot_2, u[2], loc.odom_rot_sigma)

    prob = prob_rot_1 * prob_trans * prob_rot_2

    return prob

def prediction_step(cur_odom, prev_odom):
    """ Prediction step of the Bayes Filter.
    Update the probabilities in loc.bel_bar based on loc.bel from the previous time step and the odometry motion model.

    Args:
        cur_odom  ([Pose]): Current Pose
        prev_odom ([Pose]): Previous Pose
    """

    u = compute_control(cur_odom, prev_odom)
    for x_prev in range(mapper.MAX_CELLS_X):
        for y_prev in range(mapper.MAX_CELLS_Y):
            for th_prev in range(mapper.MAX_CELLS_A):
                if(loc.bel_bar[x_prev,y_prev,th_prev] < 0.0001): # skip loop if belief too low
                    continue
                for x in range(mapper.MAX_CELLS_X):
                    for y in range(mapper.MAX_CELLS_Y):
                        for th in range(mapper.MAX_CELLS_A):
                            prev_pose = mapper.from_map(x_prev, y_prev, th_prev)
                            cur_pose = mapper.from_map(x, y, th)
                            trans_prob = odom_motion_model(cur_pose, prev_pose, u)
                            loc.bel_bar[x, y, th] += trans_prob*loc.bel[x_prev, y_prev, th_prev]
    # normalize
    loc.bel_bar = loc.bel_bar/np.sum(loc.bel_bar)

def sensor_model(obs):
    """ This is the equivalent of p(z|x).


    Args:
        obs ([ndarray]): A 1D array consisting of the true observations for a specific robot pose in the map

    Returns:
        [ndarray]: Returns a 1D array of size 18 (=loc.OBS_PER_CELL) with the likelihoods of each individual sensor measurement
    """

    prob_array = np.zeros(18)
    for i in range(0,mapper.OBS_PER_CELL):
        prob_array[i] = loc.gaussian(lc.obs_range_data[i], obs[i], loc.sensor_sigma)

    return prob_array

def update_step():
    """ Update step of the Bayes Filter.
    Update the probabilities in loc.bel based on loc.bel_bar and the sensor model.
    """

    obs = np.empty((mapper.MAX_CELLS_X, mapper.MAX_CELLS_Y, mapper.MAX_CELLS_A, mapper.OBS_PER_CELL))
    obs[:,:,:] = loc.obs_range_data.flatten()
    p = np.prod(loc.gaussian(mapper.obs_views, obs, loc.sensor_sigma), axis = 3)
    prods = np.multiply(p, loc.bel_bar)
    loc.bel = prods/np.sum(prods)

    loc.bel = loc.bel/np.sum(loc.bel)

Conclusion

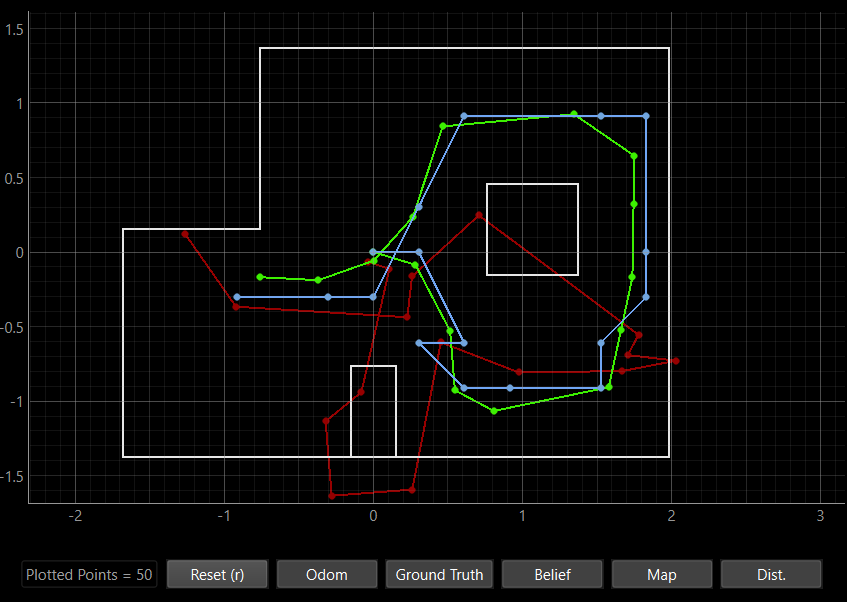

The bayes filter probably works best in more open or structured regions where the robot likely has strong sensor observations or landmarks to match to. Belief deteriorates in areas with fewer unique features, or in the end when there is an accumulation of heading drift. Overall the belief of the robots position is pretty accurate. The odometry, however, is completely off.
